Custom 4SD(SS) Stainless Steel Waterproof Deep Well Pump

Home / Products / Deep Well Pump / 4SD(SS) Stainless Steel Waterproof Deep Well Pump
  • 4SD(SS) Stainless Steel Waterproof Deep Well Pump
  • 4SD(SS) Stainless Steel Waterproof Deep Well Pump

4SD(SS) Stainless Steel Waterproof Deep Well Pump

The 4SD(SS) Stainless Steel Waterproof Deep Well Pump is engineered to provide reliable and efficient water pumping for a variety of applications. Constructed with high-quality stainless steel and designed to be fully waterproof, this pump excels in both deep well water extraction and high-pressure applications. Its durability, combined with efficient energy use, makes it an excellent solution for a wide range of water supply, irrigation, and industrial processes.

+86-400-0576-008 salesmanager@yuanshengmech.com
contact us
PREV：4QJ Industrial Deep Well PumpNEXT：3.5SD(QJ) High Performance Stainless Steel Deep Well Pump
  • Features
  • Specification
  • Any questions

Product Advantages
High Durability
The 4SD(SS) pump is built using high-grade stainless steel, ensuring resistance to corrosion, rust, and damage from waterborne elements.
The stainless steel construction allows the pump to perform reliably in environments where traditional pumps might degrade, including in saline or chemically reactive water conditions.

Waterproof Design
The fully waterproof design of the 4SD(SS) pump ensures protection of internal components even in submerged or harsh conditions, preventing water ingress that could otherwise lead to malfunction or failure.
This feature enhances the pump's lifespan, reducing maintenance needs and ensuring consistent performance over time.

Energy Efficient
Its hydraulic design further contributes to reduced operational costs, ensuring that users can rely on consistent water flow without high energy costs.

Low Maintenance
Due to its sturdy construction and fewer moving parts, the 4SD(SS) pump is relatively easy to maintain. The wear and tear are minimized, which lowers the frequency of maintenance tasks.
Regular maintenance can be easily performed, contributing to reduced downtime and prolonged pump operation.

Product Features
Corrosion-Resistant Stainless Steel Construction
The body, shaft, and other key components of the 4SD(SS) pump are made of high-quality stainless steel, ensuring long-term resistance to corrosion.
This construction is ideal for use in wells, rivers, and reservoirs where the pump may be exposed to varying water conditions over time.

Advanced Waterproof Seals
The pump features advanced waterproof sealing technology that protects the motor and other internal components from moisture, ensuring long-term durability even in submerged environments.
These seals maintain the integrity of the pump’s internal systems, keeping contaminants out and water in, which helps avoid damage caused by water ingress.

Multi-Stage Impeller System
Equipped with a multi-stage impeller, the 4SD(SS) pump is capable of producing high water pressure and lift, making it suitable for deep well applications and systems requiring significant head.
The impeller system is designed to reduce cavitation and improve overall efficiency, making the pump more effective in a variety of water pumping scenarios.

Compact and Efficient Motor
The motor is designed to be both powerful and compact, allowing it to fit into tight spaces while maintaining efficient performance.
This design also reduces the overall weight of the pump, making it easier to install and handle, even in deep well systems.

High Flow Capacity
The pump is capable of delivering a high volume of water, making it suitable for a range of applications requiring significant water flow.
Its high capacity ensures that the pump can handle various flow rates and meet the needs of larger systems or operations.

Product Applications
Agricultural Irrigation
The 4SD(SS) pump is an excellent choice for agricultural irrigation, especially in remote or rural areas where consistent and reliable water supply is crucial for crop health.
Its deep well capability ensures it can access water from deeper sources, making it ideal for farms that rely on groundwater or other deep water reserves.

Water Supply for Municipal and Residential Systems
This pump is widely used for water supply in residential areas, farms, and municipalities. It ensures a reliable water supply for households and industries requiring water for daily use, processing, or cooling.
Its high efficiency and multi-stage design make it capable of handling various water distribution needs, from low to high flow systems.

Industrial Cooling and Processing
In industrial applications, the 4SD(SS) pump is effective for water cooling and processing needs. It helps circulate water through cooling systems or heat exchangers, preventing overheating in equipment and ensuring smooth industrial processes.
Its high pressure and flow capabilities make it suitable for large-scale cooling operations in manufacturing plants or power stations.

WARRANTY: 1 YEAR
● (According to our general sales conditions).

COMPONENTS MATERIAL
Pump casing AlSI 304SS/201SS
Outlet Cast-Cu
Inlet Cast-Cu
Strainer AISI 304SS
Diffuser PC
Impeller POM
Pump shaft AISI 304SS/201SS
Shaft coupling AISI 304SS/201SS
Motor casing AISI 304SS/201SS
Mechanical seal Graphite-ceramic/TC
Top chock Cast-Cu/Cast-iron
Motor shaft AISI 304SS
Bearing NSK/C&U
Seal lubricant oil 10# White Oil

PERFORMANCE TABLE:

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3

I/min

0

5

10

15

20

25

30

35

40

45

50

4SD(SS)m2/8

4SD(SS)2/8

0.37

0.5

1.25"

H(m)

53

52

51

51

48

46

42

38

34

28

23

4SD(SS)m2/11

4SD(SS)2/11

0.55

0.75

1.25"

75

72

70

70

67

63

58

52

46

39

31

4SD(SS)m2/14

4SD(SS)2/14

0.75

1

1.25"

93

92

90

89

85

80

74

67

59

50

40

4SD(SS)m2/19

4SD(SS)2/19

1.1

1.5

1.25"

126

124

122

120

115

109

100

90

80

67

54

4SD(SS)m2/25

4SD(SS)2/25

1.5

2

1.25"

166

164

160

158

151

143

132

119

105

89

71

4SD(SS)m2/38

4SD(SS)2/38

2.2

3

1.25"

252

249

243

240

230

218

201

181

160

135

108



4SD(SS)2/52

3

4

1.25"

345

341

333

329

315

298

275

248

218

184

148



4SD(SS)2/65

4

5.5

1.25"

431

426

416

411

393

373

343

309

273

230

185

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

0.6

1.2

1.8

2.4

3

3.6

4.2

4.8

5.4

I/min

0

10

20

30

40

50

60

70

80

90

4SD(SS)m3/6

4SD(SS)3/6

0.37

0.5

1.25"

H(m)

44

43

41

39

36

32

27

21

15

9

4SD(SS)m3/9

4SD(SS)3/9

0.55

0.75

1.25"

65

64

62

59

54

48

41

32

23

13

4SD(SS)m3/11

4SD(SS)3/11

0.75

1

1.25"

80

79

76

72

66

59

50

39

28

16

4SD(SS)m3/15

4SD(SS)3/15

1.1

1.5

1.25"

109

107

104

98

90

81

68

53

39

22

4SD(SS)m3/20

4SD(SS)3/20

1.5

2

1.25"

145

143

138

130

120

108

90

70

52

29

4SD(SS)m3/27

4SD(SS)3/27

2.2

3

1.25"

196

193

186

176

162

145

122

95

70

39



4SD(SS)3/40

3

4

1.25"

290

286

276

260

240

215

180

140

103

58



4SD(SS)3/50

4

5.5

1.25"

363

358

345

325

300

269

225

175

129

72



4SD(SS)3/62

5.5

7.5

1.25"

450

443

428

413

372

334

279

217

160

89



4SD(SS)3/78

7.5

10

1.25"

560

550

538

525

480

437

360

310

180

112

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3-380-415V

KW

HP

DN

Q m³/h

0

0.6

1.2

1.8

2.4

3.0

3.6

4.2

4.8

5.4

6.0

I/min

0

10

20

30

40

50

60

70

80

90

100

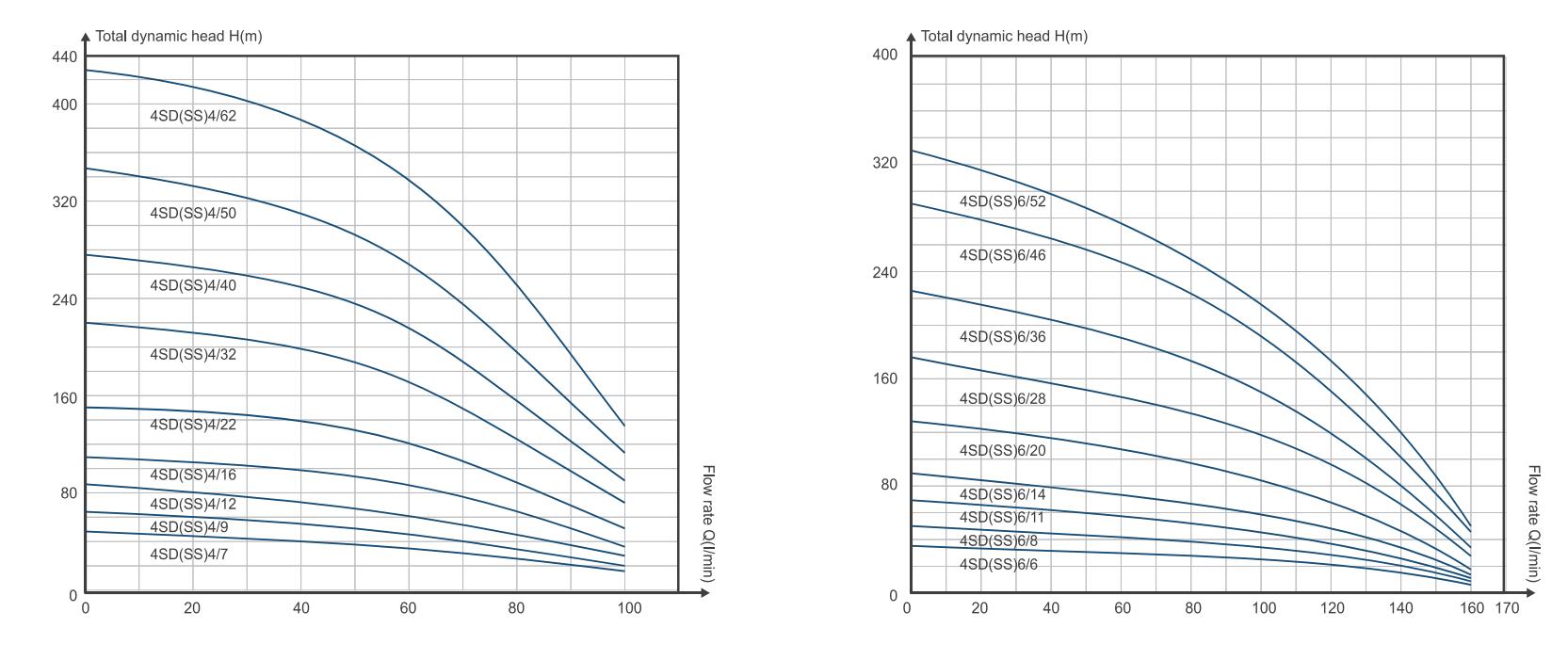

4SD(SS)m4/7

4SD(SS)4/7

0.55

0.75

1.5"

H(m)

48

48

46

45

43

41

38

33

27

22

16

4SD(SS)m4/9

4SD(SS)4/9

0.75

1

1.5"

62

61

59

58

55

53

49

43

35

28

20

4SD(SS)m4/12

4SD(SS)4/12

1.1

1.5

1.5"

83

81

79

78

73

71

65

57

46

37

27

4SD(SS)m4/16

4SD(SS)4/16

1.5

2

1.5"

110

109

105

104

98

94

86

76

62

49

36

4SD(SS)m4/22

4SD(SS)4/22

2.2

3

1.5"

151

149

144

143

134

130

119

104

85

68

49



4SD(SS)4/32

3

4

1.5"

220

217

210

208

195

189

173

151

124

99

71



4SD(SS)4/40

4

5.5

1.5"

275

272

262

260

244

236

216

189

154

124

89



4SD(SS)4/50

5.5

7.5

1.5"

344

340

328

325

305

295

270

237

193

155

111



4SD(SS)4/62

7.5

10

1.5"

427

421

406

402

378

366

335

293

239

192

138

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380-415V

KW

HP

DN

Q m³/h

0

1.2

2.4

3.6

4.8

6.0

7.2

8.4

9.6

I/min

0

20

40

60

80

100

120

140

160

4SD(SS)m6/6

4SD(SS)6/6

0.55

0.75

1.5"

H(m)

38

36

34

32

29

25

20

13

6

4SD(SS)m6/8

4SD(SS)6/8

0.75

1

1.5"

50

48

45

43

39

34

26

17

8

4SD(SS)m6/11

4SD(SS)6/11

1.1

1.5

1.5"

69

66

62

59

54

46

36

23

10

4SD(SS)m6/14

4SD(SS)6/14

1.5

2

1.5"

88

85

78

75

68

59

46

30

13

4SD(SS)m6/20

4SD(SS)6/20

2.2

3

1.5"

126

121

112

107

98

84

65

43

19



4SD(SS)6/28

3

4

1.5"

177

169

157

150

137

118

92

60

26



4SD(SS)6/36

4

5.5

1.5"

227

218

202

192

176

152

118

77

34



4SD(SS)6/46

5.5

7.5

1.5"

290

278

258

246

225

194

151

98

43



4SD(SS)6/52

7.5

10

1.5"

328

314

291

278

254

219

170

111

49

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380-415V

KW

HP

DN

Q m³/h

0

1.20

2.40

3.60

4.80

6.00

7.20

8.40

9.60

10.80

I/min

0

20

40

60

80

100

120

140

160

180

4SD(SS)m8/5

4SD(SS)8/5

0.55

0.75

2"

H(m)

29

28

27

26

25

23

20

17

13

3

4SD(SS)m8/6

4SD(SS)8/6

0.75

1

2"

35

34

33

31

29

27

24

21

15

3

4SD(SS)m8/8

4SD(SS)8/8

1.1

1.5

2"

46

45

44

41

39

36

32

27

21

4

4SD(SS)m8/11

4SD(SS)8/11

1.5

2

2"

64

62

60

57

54

50

45

38

28

6

4SD(SS)m8/15

4SD(SS)8/15

2.2

3

2"

87

84

82

78

74

68

61

51

39

8



4SD(SS)8/20

3

4

2"

116

113

109

103

98

91

81

69

52

10



4SD(SS)8/28

4

5.5

2"

162

158

153

145

137

127

114

96

72

14



4SD(SS)8/36

5.5

7.5

2"

209

203

196

186

177

163

146

123

93

18



4SD(SS)8/44

7.5

10

2"

255

248

240

227

216

200

179

151

114

22

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380-415V

KW

HP

DN

Q m³/h

0

1.80

3.06

5.40

7.20

9.0

10.80

12.60

14.40

I/min

0

30

60

90

120

150

180

210

240

4SD(SS)m10/5

4SD(SS)10/5

0.75

1

2"

H(m)

30

30

28

26

24

21

16

13

7

4SD(SS)m10/7

4SD(SS)10/7

1.1

1.5

2"

42

41

39

37

34

29

22

17

10

4SD(SS)m10/9

4SD(SS)10/9

1.5

2

2"

55

53

50

47

43

37

28

22

13

4SD(SS)m10/13

4SD(SS)10/13

2.2

3

2"

79

77

72

68

63

54

41

37

19



4SD(SS)10/18

3

4

2"

109

107

100

94

87

75

57

51

26



4SD(SS)10/23

4

5.5

2"

139

136

127

121

111

95

72

59

33



4SD(SS)10/28

5.5

7.5

2"

170

166

155

147

135

116

88

68

40



4SD(SS)10/36

7.5

10

2"

218

213

199

189

174

149

113

82

52

Type

Motor power

Outlet

Delivery N≈2850 r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

2

4

6

8

10

12

14

16

I/min

0

33

67

100

133

167

200

233

267

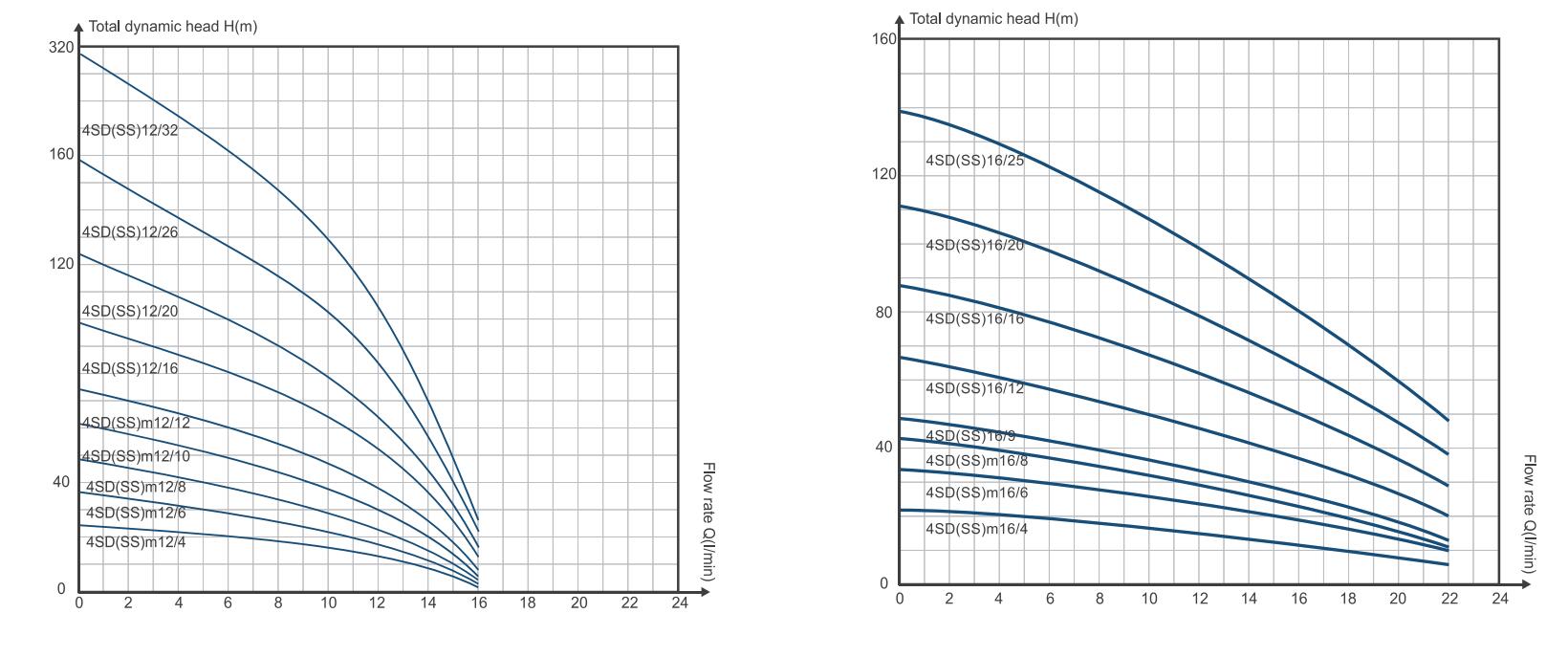

4SD(SS)m12/4

4SD(SS)12/4

0.75

1

2"

H(m)

24

23

21

19

16

14

10

6

2

4SD(SS)m12/6

4SD(SS)12/6

1.1

1.5

2"

36

34

32

29

26

22

17

11

3

4SD(SS)m12/8

4SD(SS)12/8

1.5

2

2"

49

46

43

40

36

30

24

16

5

4SD(SS)m12/10

4SD(SS)12/10

1.8

2.5

2"

61

58

53

49

44

38

30

20

6

4SD(SS)m12/12

4SD(SS)12/12

2.2

3

2"

73

70

65

58

53

45

36

24

8



4SD(SS)12/16

3

4

2"

98

93

86

80

71

62

51

36

13



4SD(SS)12/20

4

5.5

2"

123

116

108

100

89

78

64

45

16



4SD(SS)12/26

5.5

7.5

2"

159

151

140

130

115

101

83

59

21



4SD(SS)12/32

7.5

10

2"

196

186

172

160

142

124

102

72

26

Type

Motor power

Outlet

Delivery N≈2850 r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

4

6

10

12

14

16

18

20

22

I/min

0

100

130

165

200

230

265

300

360

367

4SD(SS)m16/4

4SD(SS)16/4

1.1

1.5

2"

H(m)

22

21

20

17

15

14

12

10

8

6

4SD(SS)m16/6

4SD(SS)16/6

1.5

2

2"

34

31

30

26

24

22

19

17

14

10

4SD(SS)m16/8

4SD(SS)16/8

1.8

2.5

2"

43

39

37

32

30

26

23

20

18

11



4SD(SS)16/9

2.2

3

2"

49

45

42

36

34

30

27

23

19

13



4SD(SS)16/12

3

4

2"

67

61

58

50

46

41

38

32

27

20



4SD(SS)16/16

4

5.5

2"

88

81

77

67

62

56

51

44

37

29



4SD(SS)16/20

5.5

7.5

2"

111

104

98

85

78

72

65

56

48

38



4SD(SS)16/25

7.5

10

2"

139

130

123

106

98

90

81

70

60

48

PACKAGING INFORMATION:

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m2/8-0.37

43x10x10.5

3.82

44x11x11.5

7.6

78x11x11.5

11.45

4SD(SS)m2/11-0.55

50x10x10.5

4.48

47x11x11.5

8.82

89x11x11.5

13.42

4SD(SS)m2/14-0.75

61x10x10.5

5.38

49x11x11.5

10.1

102x11x11.5

15.08

4SD(SS)m2/19-1.1

74x10x10.5

6.58

54x11x11.5

11.5

120x11x11.5

18.14

4SD(SS)m2/25-1.5

92x10x10.5

8.34

58x11x11.5

14.32

142x11x11.5

19.26

4SD(SS)m2/38-2.2

128x10x10.5

10.92

67x11x12.5

18.54

187x11x12.5

29.16

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)2/8-0.37

43x10x10.5

3.82

44x11x11.5

7.6

78x11x11.5

11.45

4SD(SS)2/11-0.55

50x10x10.5

4.48

47x11x11.5

8.82

89x11x11.5

13.42

4SD(SS)2/14-0.75

61x10x10.5

5.38

49x11x11.5

10.1

102x11x11.5

15.08

4SD(SS)2/19-1.1

74x10x10.5

6.58

54x11x11.5

11.5

120x11x11.5

18.14

4SD(SS)2/25-1.5

92x10x10.5

8.34

58x11x11.5

14.32

142x11x11.5

19.26

4SD(SS)2/38-2.2

128x10x10.5

10.92

62x11x12.5

15.9

182x11x12.5

28.16

4SD(SS)2/52-3.0

182x10x10.5

16.92

69x11x12.5

20.7





4SD(SS)2/65-4.0

222x10x10.5

20.83

77x11x12.5

24.1





Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m3/6-0.37

39x10x10.5

3.2

44x11x11.5

7.6

75x11x11.5

10.82

4SD(SS)m3/9-0.55

47x10x10.5

4

47x11x11.5

8.82

86x11x11.5

12.74

4SD(SS)m3/11-0.75

52x10x10.5

4.26

49x11x11.5

10.1

94x11x11.5

15.38

4SD(SS)m3/15-1.1

67x10x10.5

6.2

54x11x11.5

11.5

114x11x11.5

18.74

4SD(SS)m3/20-1.5

80x10x10.5

7.44

58x11x11.5

14.32

131x11x11.5

22.04

4SD(SS)m3/27-2.2

103x1010.5

9.08

67x11x12.5

 18.54

162x11x12.5

26.38

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)3/6-0.37

39x10x10.5

3.2

44x11x11.5

7.6

75x11x11.5

10.82

4SD(SS)3/9-0.55

47x10x10.5

4

47x11x11.5

8.82

86x11x11.5

12.74

4SD(SS)3/11-0.75

52x10x10.5

4.26

49x11x11.5

10.1

94x11x11.5

15.38

4SD(SS)3/15-1.1

67x10x10.5

6.2

54x11x11.5

11.5

114x11x11.5

18.74

4SD(SS)3/20-1.5

80x10x10.5

7.44

58x11x11.5

14.32

131x11x11.5

22.04

4SD(SS)3/27-2.2

103x10x10.5

9.08

62x11x12.5

15.9

157x11x12.5

25.38

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m4/7-0.55

42x10x10.5

3.86

44x11x11.5

7.6

82x11x11.5

12.25

4SD(SS)m4/9-0.75

49x10x10.5

4.36

47x11x11.5

8.82

90x11x11.5

14.06

4SD(SS)m4/12-1.1

61x10x10.5

5.11

49x11x11.5

10.1

108x11x11.5

17.02

4SD(SS)m4/16-1.5

72x10x10.5

5.72

54x11x11.5

11.5

124x11x11.5

18.09

4SD(SS)m4/22-2.2

94x10x10.5

8.54

58x11x11.5

14.32

153x11x12.5

25.46

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)4/7-0.55

42x10x10.5

3.86

47x11x11.5

7.6

82x11x11.5

12.25

4SD(SS)4/9-0.75

49x10x10.5

4.36

49x11x11.5

8.82

90x11x11.5

14.06

4SD(SS)4/12-1.1

61x10x10.5

5.11

54x11x11.5

10.1

108x11x11.5

17.02

4SD(SS)4/16-1.5

72x10x10.5

5.72

58x11x11.5

11.5

124x11x11.5

18.09

4SD(SS)4/22-2.2

94x10x10.5

8.54

62x11x12.5

14.32

148x11x12.5

24.46

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m6/6-0.55

44x10x10.5

3.89

44x11x11.5

7.6

83x11x11.5

13

4SD(SS)m6/8-0.75

50x10x10.5

4.42

47x11x11.5

8.82

91x11x11.5

15.04

4SD(SS)m6/11-1.1

63x10x10.5

5.74

49x11x11.5

10.1

110x11x11.5

18.1

4SD(SS)m6/14-1.5

72x10x10.5

6.6

54x11x11.5

11.5

123x11x11.5

21.26

4SD(SS)m6/20-2.2

95x10x10.5

8.2

58x11x11.5

14.32

154x11x12.5

26.94

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)6/6-0.55

44x10x10.5

3.89

47x11x11.5

7.6

83x11x11.5

13

4SD(SS)6/8-0.75

50x10x10.5

4.42

49x11x11.5

8.82

91x11x11.5

15.04

4SD(SS)6/11-1.1

63x10x10.5

5.74

54x11x11.5

10.1

110x11x11.5

18.1

4SD(SS)6/14-1.5

72x10x10.5

6.6

58x11x11.5

11.5

123x11x11.5

21.26

4SD(SS)6/20-2.2

95x10x10.5

8.2

62x11x12.5

14.32

149x11x12.5

25.84

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole  pump size(cm)

Whole pump weight(kg)

4SD(SS)m8/5-0.55

46x10x10.5

3.68

44x11x11.5

7.6

85x11x11.5

14.22

4SD(SS)m8/6-0.75

50x10x10.5

4

47x11x11.5

8.82

91x11x11.5

16.18

4SD(SS)m8/8-1.1

57x10x10.5

4.5

49x11x11.5

10.1

104x11x11.5

19.2

4SD(SS)m8/11-1.5

72x10x10.5

5.42

54x11x11.5

11.5

123x11x11.5

22.1

4SD(SS)m8/15-2.2

87x10x10.5

6.3

58x11x11.5

14.32

146x11x12.5

26.52

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Wholepump weight(kg)

4SD(SS)8/5-0.55

50x10x10.5

3.68

47x11x11.5

7.6

85x11x11.5

14.22

4SD(SS)8/6-0.75

57x10x10.5

4

49x11x11.5

8.82

91x11x11.5

16.18

4SD(SS)8/8-1.1

72x10x10.5

4.5

54x11x11.5

10.1

104x11x11.5

19.2

4SD(SS)8/11-1.5

87x10x10.5

5.42

58x11x11.5

11.5

123x11x11.5

22.1

4SD(SS)8/15-2.2

109x10x10.5

6.3

62x11x12.5

14.32

141x11x12.5

25.52

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m10/5-0.75

46x10x10.5

3.81

44x11x11.5

7.6

87x11x11.5

16.18

4SD(SS)m10/7-1.1

53x10x10.5

4.38

47x11x11.5

8.82

100x11x11.5

19.2

4SD(SS)m10/9-1.5

61x10x10.5

5.04

49x11x11.5

10.1

112x11x11.5

22.1

4SD(SS)m10/13-2.2

79x10x10.5

5.76

54x11x11.5

11.5

139x11x11.5

26.52

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)10/5-0.75

46x10x10.5

3.81

47x11x11.5

7.6

87x11x11.5

16.18

4SD(SS)10/7-1.1

53x10x10.5

4.38

49x11x11.5

8.82

100x11x11.5

19.2

4SD(SS)10/9-1.5

61x10x10.5

5.04

54x11x11.5

10.1

112x11x11.5

22.1

4SD(SS)10/13-2.2

79x10x10.5

5.76

58x11x11.5

11.5

134x11x11.5

25.52

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m12-4-0.75

49x10x10.5

4.39

44x11x11.5

7.6

90x11x11.5

14.49

4SD(SS)m12/6-1.1

60x10x10.5

5.38

47x11x11.5

8.82

106x11x11.5

16.88

4SD(SS)m12/8-1.5

75x10x10.5

6.72

49x11x11.5

10.1

125x11x11.5

21.04

4SD(SS)m12/10-1.8

83x10x10.5

6.61

54x11x11.5

11.5

159x11x11.5

23.93

4SD(SS)m12/12-2.2

97x10x10.5

7.65

58x11x11.5

14.32

156x11x11.5

26.19

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Wholepump size(cm)

Whole pump weight(kg)

4SD(SS)12-4-0.75

49x10x10.5

4.39

47x11x11.5

7.6

90x11x11.5

14.49

4SD(SS)12/6-1.1

60x10x10.5

5.38

49x11x11.5

8.82

106x11x11.5

16.88

4SD(SS)12/8-1.5

75x10x10.5

6.72

54x11x11.5

10.1

125x11x11.5

21.04

4SD(SS)12/10-1.8

83x10x10.5

6.61

58x11x11.5

11.5

159x11x11.5

23.93

4SD(SS)12/12-2.2

97x10x10.5

7.65

62x11x12.5

14.32

151x11x11.5

25.19

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m16/5-1.1

54x10x10.5

4.4

44x11x11.5

7.6

108x11x11.5

17.06

4SD(SS)m16/7-1.5

68x10x10.5

6.9

47x11x11.5

8.82

125x11x11.5

21.04

4SD(SS)m16/10-2.2

93x10x10.5

8.0

49x11x11.5

10.1

155x11x12.5

26.18

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)16/5-1.1

54x10x10.5

4.4

47x11x11.5

7.6

108x11x11.5

17.06

4SD(SS)16/7-1.5

68x10x10.5

6.9

49x11x11.5

8.82

125x11x11.5

21.04

4SD(SS)16/10-2.2

93x10x10.5

8.0

54x11x11.5

10.1

150x11x11.5

25.18

WARRANTY: 1 YEAR
● (According to our general sales conditions).

COMPONENTS MATERIAL
Pump casing AlSI 304SS/201SS
Outlet Cast-Cu
Inlet Cast-Cu
Strainer AISI 304SS
Diffuser PC
Impeller POM
Pump shaft AISI 304SS/201SS
Shaft coupling AISI 304SS/201SS
Motor casing AISI 304SS/201SS
Mechanical seal Graphite-ceramic/TC
Top chock Cast-Cu/Cast-iron
Motor shaft AISI 304SS
Bearing NSK/C&U
Seal lubricant oil 10# White Oil

PERFORMANCE TABLE:

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3

I/min

0

5

10

15

20

25

30

35

40

45

50

4SD(SS)m2/8

4SD(SS)2/8

0.37

0.5

1.25"

H(m)

53

52

51

51

48

46

42

38

34

28

23

4SD(SS)m2/11

4SD(SS)2/11

0.55

0.75

1.25"

75

72

70

70

67

63

58

52

46

39

31

4SD(SS)m2/14

4SD(SS)2/14

0.75

1

1.25"

93

92

90

89

85

80

74

67

59

50

40

4SD(SS)m2/19

4SD(SS)2/19

1.1

1.5

1.25"

126

124

122

120

115

109

100

90

80

67

54

4SD(SS)m2/25

4SD(SS)2/25

1.5

2

1.25"

166

164

160

158

151

143

132

119

105

89

71

4SD(SS)m2/38

4SD(SS)2/38

2.2

3

1.25"

252

249

243

240

230

218

201

181

160

135

108



4SD(SS)2/52

3

4

1.25"

345

341

333

329

315

298

275

248

218

184

148



4SD(SS)2/65

4

5.5

1.25"

431

426

416

411

393

373

343

309

273

230

185

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

0.6

1.2

1.8

2.4

3

3.6

4.2

4.8

5.4

I/min

0

10

20

30

40

50

60

70

80

90

4SD(SS)m3/6

4SD(SS)3/6

0.37

0.5

1.25"

H(m)

44

43

41

39

36

32

27

21

15

9

4SD(SS)m3/9

4SD(SS)3/9

0.55

0.75

1.25"

65

64

62

59

54

48

41

32

23

13

4SD(SS)m3/11

4SD(SS)3/11

0.75

1

1.25"

80

79

76

72

66

59

50

39

28

16

4SD(SS)m3/15

4SD(SS)3/15

1.1

1.5

1.25"

109

107

104

98

90

81

68

53

39

22

4SD(SS)m3/20

4SD(SS)3/20

1.5

2

1.25"

145

143

138

130

120

108

90

70

52

29

4SD(SS)m3/27

4SD(SS)3/27

2.2

3

1.25"

196

193

186

176

162

145

122

95

70

39



4SD(SS)3/40

3

4

1.25"

290

286

276

260

240

215

180

140

103

58



4SD(SS)3/50

4

5.5

1.25"

363

358

345

325

300

269

225

175

129

72



4SD(SS)3/62

5.5

7.5

1.25"

450

443

428

413

372

334

279

217

160

89



4SD(SS)3/78

7.5

10

1.25"

560

550

538

525

480

437

360

310

180

112

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3-380-415V

KW

HP

DN

Q m³/h

0

0.6

1.2

1.8

2.4

3.0

3.6

4.2

4.8

5.4

6.0

I/min

0

10

20

30

40

50

60

70

80

90

100

4SD(SS)m4/7

4SD(SS)4/7

0.55

0.75

1.5"

H(m)

48

48

46

45

43

41

38

33

27

22

16

4SD(SS)m4/9

4SD(SS)4/9

0.75

1

1.5"

62

61

59

58

55

53

49

43

35

28

20

4SD(SS)m4/12

4SD(SS)4/12

1.1

1.5

1.5"

83

81

79

78

73

71

65

57

46

37

27

4SD(SS)m4/16

4SD(SS)4/16

1.5

2

1.5"

110

109

105

104

98

94

86

76

62

49

36

4SD(SS)m4/22

4SD(SS)4/22

2.2

3

1.5"

151

149

144

143

134

130

119

104

85

68

49



4SD(SS)4/32

3

4

1.5"

220

217

210

208

195

189

173

151

124

99

71



4SD(SS)4/40

4

5.5

1.5"

275

272

262

260

244

236

216

189

154

124

89



4SD(SS)4/50

5.5

7.5

1.5"

344

340

328

325

305

295

270

237

193

155

111



4SD(SS)4/62

7.5

10

1.5"

427

421

406

402

378

366

335

293

239

192

138

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380-415V

KW

HP

DN

Q m³/h

0

1.2

2.4

3.6

4.8

6.0

7.2

8.4

9.6

I/min

0

20

40

60

80

100

120

140

160

4SD(SS)m6/6

4SD(SS)6/6

0.55

0.75

1.5"

H(m)

38

36

34

32

29

25

20

13

6

4SD(SS)m6/8

4SD(SS)6/8

0.75

1

1.5"

50

48

45

43

39

34

26

17

8

4SD(SS)m6/11

4SD(SS)6/11

1.1

1.5

1.5"

69

66

62

59

54

46

36

23

10

4SD(SS)m6/14

4SD(SS)6/14

1.5

2

1.5"

88

85

78

75

68

59

46

30

13

4SD(SS)m6/20

4SD(SS)6/20

2.2

3

1.5"

126

121

112

107

98

84

65

43

19



4SD(SS)6/28

3

4

1.5"

177

169

157

150

137

118

92

60

26



4SD(SS)6/36

4

5.5

1.5"

227

218

202

192

176

152

118

77

34



4SD(SS)6/46

5.5

7.5

1.5"

290

278

258

246

225

194

151

98

43



4SD(SS)6/52

7.5

10

1.5"

328

314

291

278

254

219

170

111

49

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380-415V

KW

HP

DN

Q m³/h

0

1.20

2.40

3.60

4.80

6.00

7.20

8.40

9.60

10.80

I/min

0

20

40

60

80

100

120

140

160

180

4SD(SS)m8/5

4SD(SS)8/5

0.55

0.75

2"

H(m)

29

28

27

26

25

23

20

17

13

3

4SD(SS)m8/6

4SD(SS)8/6

0.75

1

2"

35

34

33

31

29

27

24

21

15

3

4SD(SS)m8/8

4SD(SS)8/8

1.1

1.5

2"

46

45

44

41

39

36

32

27

21

4

4SD(SS)m8/11

4SD(SS)8/11

1.5

2

2"

64

62

60

57

54

50

45

38

28

6

4SD(SS)m8/15

4SD(SS)8/15

2.2

3

2"

87

84

82

78

74

68

61

51

39

8



4SD(SS)8/20

3

4

2"

116

113

109

103

98

91

81

69

52

10



4SD(SS)8/28

4

5.5

2"

162

158

153

145

137

127

114

96

72

14



4SD(SS)8/36

5.5

7.5

2"

209

203

196

186

177

163

146

123

93

18



4SD(SS)8/44

7.5

10

2"

255

248

240

227

216

200

179

151

114

22

Type

Motor power

Outlet

Delivery N≈2850r/min

1~220V-240V

3~380-415V

KW

HP

DN

Q m³/h

0

1.80

3.06

5.40

7.20

9.0

10.80

12.60

14.40

I/min

0

30

60

90

120

150

180

210

240

4SD(SS)m10/5

4SD(SS)10/5

0.75

1

2"

H(m)

30

30

28

26

24

21

16

13

7

4SD(SS)m10/7

4SD(SS)10/7

1.1

1.5

2"

42

41

39

37

34

29

22

17

10

4SD(SS)m10/9

4SD(SS)10/9

1.5

2

2"

55

53

50

47

43

37

28

22

13

4SD(SS)m10/13

4SD(SS)10/13

2.2

3

2"

79

77

72

68

63

54

41

37

19



4SD(SS)10/18

3

4

2"

109

107

100

94

87

75

57

51

26



4SD(SS)10/23

4

5.5

2"

139

136

127

121

111

95

72

59

33



4SD(SS)10/28

5.5

7.5

2"

170

166

155

147

135

116

88

68

40



4SD(SS)10/36

7.5

10

2"

218

213

199

189

174

149

113

82

52

Type

Motor power

Outlet

Delivery N≈2850 r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

2

4

6

8

10

12

14

16

I/min

0

33

67

100

133

167

200

233

267

4SD(SS)m12/4

4SD(SS)12/4

0.75

1

2"

H(m)

24

23

21

19

16

14

10

6

2

4SD(SS)m12/6

4SD(SS)12/6

1.1

1.5

2"

36

34

32

29

26

22

17

11

3

4SD(SS)m12/8

4SD(SS)12/8

1.5

2

2"

49

46

43

40

36

30

24

16

5

4SD(SS)m12/10

4SD(SS)12/10

1.8

2.5

2"

61

58

53

49

44

38

30

20

6

4SD(SS)m12/12

4SD(SS)12/12

2.2

3

2"

73

70

65

58

53

45

36

24

8



4SD(SS)12/16

3

4

2"

98

93

86

80

71

62

51

36

13



4SD(SS)12/20

4

5.5

2"

123

116

108

100

89

78

64

45

16



4SD(SS)12/26

5.5

7.5

2"

159

151

140

130

115

101

83

59

21



4SD(SS)12/32

7.5

10

2"

196

186

172

160

142

124

102

72

26

Type

Motor power

Outlet

Delivery N≈2850 r/min

1~220V-240V

3~380V-415V

KW

HP

DN

Q m³/h

0

4

6

10

12

14

16

18

20

22

I/min

0

100

130

165

200

230

265

300

360

367

4SD(SS)m16/4

4SD(SS)16/4

1.1

1.5

2"

H(m)

22

21

20

17

15

14

12

10

8

6

4SD(SS)m16/6

4SD(SS)16/6

1.5

2

2"

34

31

30

26

24

22

19

17

14

10

4SD(SS)m16/8

4SD(SS)16/8

1.8

2.5

2"

43

39

37

32

30

26

23

20

18

11



4SD(SS)16/9

2.2

3

2"

49

45

42

36

34

30

27

23

19

13



4SD(SS)16/12

3

4

2"

67

61

58

50

46

41

38

32

27

20



4SD(SS)16/16

4

5.5

2"

88

81

77

67

62

56

51

44

37

29



4SD(SS)16/20

5.5

7.5

2"

111

104

98

85

78

72

65

56

48

38



4SD(SS)16/25

7.5

10

2"

139

130

123

106

98

90

81

70

60

48

PACKAGING INFORMATION:

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m2/8-0.37

43x10x10.5

3.82

44x11x11.5

7.6

78x11x11.5

11.45

4SD(SS)m2/11-0.55

50x10x10.5

4.48

47x11x11.5

8.82

89x11x11.5

13.42

4SD(SS)m2/14-0.75

61x10x10.5

5.38

49x11x11.5

10.1

102x11x11.5

15.08

4SD(SS)m2/19-1.1

74x10x10.5

6.58

54x11x11.5

11.5

120x11x11.5

18.14

4SD(SS)m2/25-1.5

92x10x10.5

8.34

58x11x11.5

14.32

142x11x11.5

19.26

4SD(SS)m2/38-2.2

128x10x10.5

10.92

67x11x12.5

18.54

187x11x12.5

29.16

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)2/8-0.37

43x10x10.5

3.82

44x11x11.5

7.6

78x11x11.5

11.45

4SD(SS)2/11-0.55

50x10x10.5

4.48

47x11x11.5

8.82

89x11x11.5

13.42

4SD(SS)2/14-0.75

61x10x10.5

5.38

49x11x11.5

10.1

102x11x11.5

15.08

4SD(SS)2/19-1.1

74x10x10.5

6.58

54x11x11.5

11.5

120x11x11.5

18.14

4SD(SS)2/25-1.5

92x10x10.5

8.34

58x11x11.5

14.32

142x11x11.5

19.26

4SD(SS)2/38-2.2

128x10x10.5

10.92

62x11x12.5

15.9

182x11x12.5

28.16

4SD(SS)2/52-3.0

182x10x10.5

16.92

69x11x12.5

20.7





4SD(SS)2/65-4.0

222x10x10.5

20.83

77x11x12.5

24.1





Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m3/6-0.37

39x10x10.5

3.2

44x11x11.5

7.6

75x11x11.5

10.82

4SD(SS)m3/9-0.55

47x10x10.5

4

47x11x11.5

8.82

86x11x11.5

12.74

4SD(SS)m3/11-0.75

52x10x10.5

4.26

49x11x11.5

10.1

94x11x11.5

15.38

4SD(SS)m3/15-1.1

67x10x10.5

6.2

54x11x11.5

11.5

114x11x11.5

18.74

4SD(SS)m3/20-1.5

80x10x10.5

7.44

58x11x11.5

14.32

131x11x11.5

22.04

4SD(SS)m3/27-2.2

103x1010.5

9.08

67x11x12.5

 18.54

162x11x12.5

26.38

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)3/6-0.37

39x10x10.5

3.2

44x11x11.5

7.6

75x11x11.5

10.82

4SD(SS)3/9-0.55

47x10x10.5

4

47x11x11.5

8.82

86x11x11.5

12.74

4SD(SS)3/11-0.75

52x10x10.5

4.26

49x11x11.5

10.1

94x11x11.5

15.38

4SD(SS)3/15-1.1

67x10x10.5

6.2

54x11x11.5

11.5

114x11x11.5

18.74

4SD(SS)3/20-1.5

80x10x10.5

7.44

58x11x11.5

14.32

131x11x11.5

22.04

4SD(SS)3/27-2.2

103x10x10.5

9.08

62x11x12.5

15.9

157x11x12.5

25.38

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m4/7-0.55

42x10x10.5

3.86

44x11x11.5

7.6

82x11x11.5

12.25

4SD(SS)m4/9-0.75

49x10x10.5

4.36

47x11x11.5

8.82

90x11x11.5

14.06

4SD(SS)m4/12-1.1

61x10x10.5

5.11

49x11x11.5

10.1

108x11x11.5

17.02

4SD(SS)m4/16-1.5

72x10x10.5

5.72

54x11x11.5

11.5

124x11x11.5

18.09

4SD(SS)m4/22-2.2

94x10x10.5

8.54

58x11x11.5

14.32

153x11x12.5

25.46

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)4/7-0.55

42x10x10.5

3.86

47x11x11.5

7.6

82x11x11.5

12.25

4SD(SS)4/9-0.75

49x10x10.5

4.36

49x11x11.5

8.82

90x11x11.5

14.06

4SD(SS)4/12-1.1

61x10x10.5

5.11

54x11x11.5

10.1

108x11x11.5

17.02

4SD(SS)4/16-1.5

72x10x10.5

5.72

58x11x11.5

11.5

124x11x11.5

18.09

4SD(SS)4/22-2.2

94x10x10.5

8.54

62x11x12.5

14.32

148x11x12.5

24.46

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m6/6-0.55

44x10x10.5

3.89

44x11x11.5

7.6

83x11x11.5

13

4SD(SS)m6/8-0.75

50x10x10.5

4.42

47x11x11.5

8.82

91x11x11.5

15.04

4SD(SS)m6/11-1.1

63x10x10.5

5.74

49x11x11.5

10.1

110x11x11.5

18.1

4SD(SS)m6/14-1.5

72x10x10.5

6.6

54x11x11.5

11.5

123x11x11.5

21.26

4SD(SS)m6/20-2.2

95x10x10.5

8.2

58x11x11.5

14.32

154x11x12.5

26.94

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)6/6-0.55

44x10x10.5

3.89

47x11x11.5

7.6

83x11x11.5

13

4SD(SS)6/8-0.75

50x10x10.5

4.42

49x11x11.5

8.82

91x11x11.5

15.04

4SD(SS)6/11-1.1

63x10x10.5

5.74

54x11x11.5

10.1

110x11x11.5

18.1

4SD(SS)6/14-1.5

72x10x10.5

6.6

58x11x11.5

11.5

123x11x11.5

21.26

4SD(SS)6/20-2.2

95x10x10.5

8.2

62x11x12.5

14.32

149x11x12.5

25.84

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole  pump size(cm)

Whole pump weight(kg)

4SD(SS)m8/5-0.55

46x10x10.5

3.68

44x11x11.5

7.6

85x11x11.5

14.22

4SD(SS)m8/6-0.75

50x10x10.5

4

47x11x11.5

8.82

91x11x11.5

16.18

4SD(SS)m8/8-1.1

57x10x10.5

4.5

49x11x11.5

10.1

104x11x11.5

19.2

4SD(SS)m8/11-1.5

72x10x10.5

5.42

54x11x11.5

11.5

123x11x11.5

22.1

4SD(SS)m8/15-2.2

87x10x10.5

6.3

58x11x11.5

14.32

146x11x12.5

26.52

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Wholepump weight(kg)

4SD(SS)8/5-0.55

50x10x10.5

3.68

47x11x11.5

7.6

85x11x11.5

14.22

4SD(SS)8/6-0.75

57x10x10.5

4

49x11x11.5

8.82

91x11x11.5

16.18

4SD(SS)8/8-1.1

72x10x10.5

4.5

54x11x11.5

10.1

104x11x11.5

19.2

4SD(SS)8/11-1.5

87x10x10.5

5.42

58x11x11.5

11.5

123x11x11.5

22.1

4SD(SS)8/15-2.2

109x10x10.5

6.3

62x11x12.5

14.32

141x11x12.5

25.52

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m10/5-0.75

46x10x10.5

3.81

44x11x11.5

7.6

87x11x11.5

16.18

4SD(SS)m10/7-1.1

53x10x10.5

4.38

47x11x11.5

8.82

100x11x11.5

19.2

4SD(SS)m10/9-1.5

61x10x10.5

5.04

49x11x11.5

10.1

112x11x11.5

22.1

4SD(SS)m10/13-2.2

79x10x10.5

5.76

54x11x11.5

11.5

139x11x11.5

26.52

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)10/5-0.75

46x10x10.5

3.81

47x11x11.5

7.6

87x11x11.5

16.18

4SD(SS)10/7-1.1

53x10x10.5

4.38

49x11x11.5

8.82

100x11x11.5

19.2

4SD(SS)10/9-1.5

61x10x10.5

5.04

54x11x11.5

10.1

112x11x11.5

22.1

4SD(SS)10/13-2.2

79x10x10.5

5.76

58x11x11.5

11.5

134x11x11.5

25.52

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m12-4-0.75

49x10x10.5

4.39

44x11x11.5

7.6

90x11x11.5

14.49

4SD(SS)m12/6-1.1

60x10x10.5

5.38

47x11x11.5

8.82

106x11x11.5

16.88

4SD(SS)m12/8-1.5

75x10x10.5

6.72

49x11x11.5

10.1

125x11x11.5

21.04

4SD(SS)m12/10-1.8

83x10x10.5

6.61

54x11x11.5

11.5

159x11x11.5

23.93

4SD(SS)m12/12-2.2

97x10x10.5

7.65

58x11x11.5

14.32

156x11x11.5

26.19

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Wholepump size(cm)

Whole pump weight(kg)

4SD(SS)12-4-0.75

49x10x10.5

4.39

47x11x11.5

7.6

90x11x11.5

14.49

4SD(SS)12/6-1.1

60x10x10.5

5.38

49x11x11.5

8.82

106x11x11.5

16.88

4SD(SS)12/8-1.5

75x10x10.5

6.72

54x11x11.5

10.1

125x11x11.5

21.04

4SD(SS)12/10-1.8

83x10x10.5

6.61

58x11x11.5

11.5

159x11x11.5

23.93

4SD(SS)12/12-2.2

97x10x10.5

7.65

62x11x12.5

14.32

151x11x11.5

25.19

Single-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)m16/5-1.1

54x10x10.5

4.4

44x11x11.5

7.6

108x11x11.5

17.06

4SD(SS)m16/7-1.5

68x10x10.5

6.9

47x11x11.5

8.82

125x11x11.5

21.04

4SD(SS)m16/10-2.2

93x10x10.5

8.0

49x11x11.5

10.1

155x11x12.5

26.18

Three-phase/Model

Pump body size(cm)

Pump body weight(kg)

Motor size(cm)

Motor weight(kg)

Whole pump size(cm)

Whole pump weight(kg)

4SD(SS)16/5-1.1

54x10x10.5

4.4

47x11x11.5

7.6

108x11x11.5

17.06

4SD(SS)16/7-1.5

68x10x10.5

6.9

49x11x11.5

8.82

125x11x11.5

21.04

4SD(SS)16/10-2.2

93x10x10.5

8.0

54x11x11.5

10.1

150x11x11.5

25.18
  • How long does it take to get a reply after we send you an inquiry?

    We will respond to you within 12 hours after receiving your inquiry on weekdays.

  • Are you a direct manufacturer or a trading company?

    We are a factory, integrating industry and trade, we produce and sell our own products, and we also serve domestic and foreign markets.

  • What products can you provide?

    We mainly produce aquaculture machinery and submersible pumps, such as impeller aerators, waterwheel aerators, floating pumps, fans, QDX, WQD, sewage pumps, etc.

  • What are the main application areas of your products?

    Our products are widely used in fish pond oxygenation, farmland irrigation and drainage, building foundation cleaning, environmental protection chemicals and household water supply, etc.

  • Can you make customized products?

    Yes, we mainly make customized products. We develop and produce products according to the drawings or samples provided by customers.

  • What is your company's production capacity?

    We have 5 new energy-saving and environmentally friendly production lines, including a fully automatic shell enameling line and 4 natural gas heat treatment lines, with an annual production capacity of 20,000 machines.

  • How many employees are there in your company, and how many of them are technical personnel?

    The company currently has more than 50 employees, including 35 professional technicians, 2 engineers and 13 office staff.

  • How does your company ensure product quality?

    First of all, we will have corresponding inspections after each process. For the finished products, we will conduct comprehensive inspections according to customer requirements and international standards.

  • What is the payment method?

    When quoting, we will confirm the transaction method with you, FOB, CIF, CNF, or other methods. For mass production, we usually pay a 30% advance payment first and then pay the balance before shipment. Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How are the goods delivered to customers?

    We usually ship by sea, as we are close to Ningbo Port, and sea export is very convenient. At the same time, we can also ship by land or air according to customer needs. Ningbo Airport and Shanghai International Airport are very close to us.

Taizhou Yuansheng Aquacul Ture Machinery Co., Ltd.

Our company is professional supplier of 4SD(SS) Stainless Steel Waterproof Deep Well Pump and 4SD(SS) Stainless Steel Waterproof Deep Well Pump exporter, specializes in the production of more than 90 varieties of floating aerators, impeller aerators, waterwheel aerators, surge gas aerators, Roots aeration aerators, vortex microporous aerators, QY oil-immersed submersible electric pumps, QD/Q multi-stage submersible electric pumps, WQD/WQ sewage submersible electric pumps, QDX/QX small submersible electric pumps, permanent magnet frequency conversion submersible pumps, etc. in twelve major series. The products are diverse in variety and complete in specifications.

Taizhou Yuansheng Aquacul Ture Machinery Co., Ltd.

Certificate of Honor

GET FREE QUOTES


Related Products

OUR LATEST NEWS
